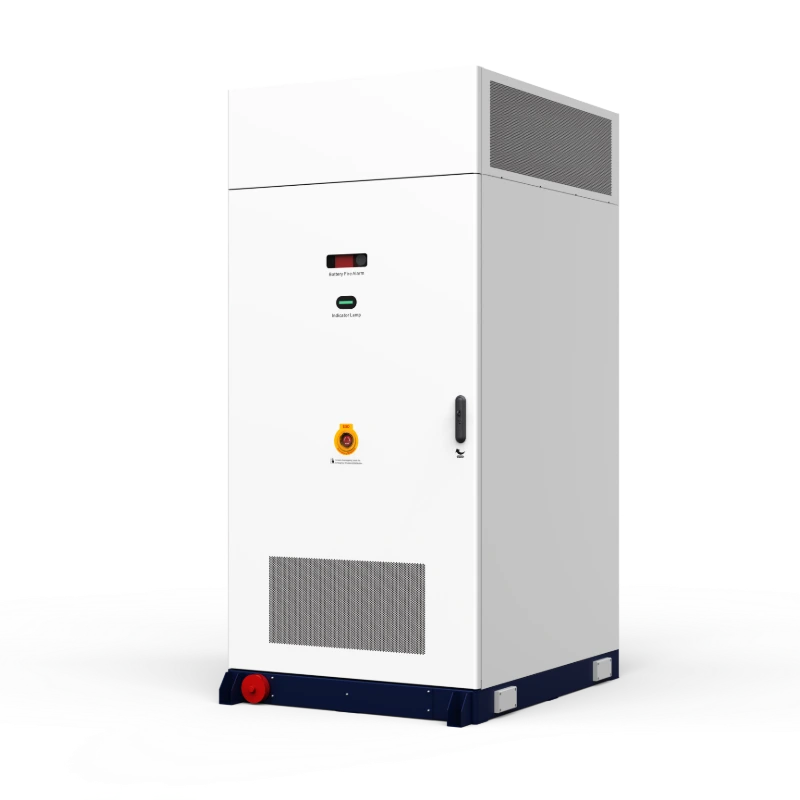

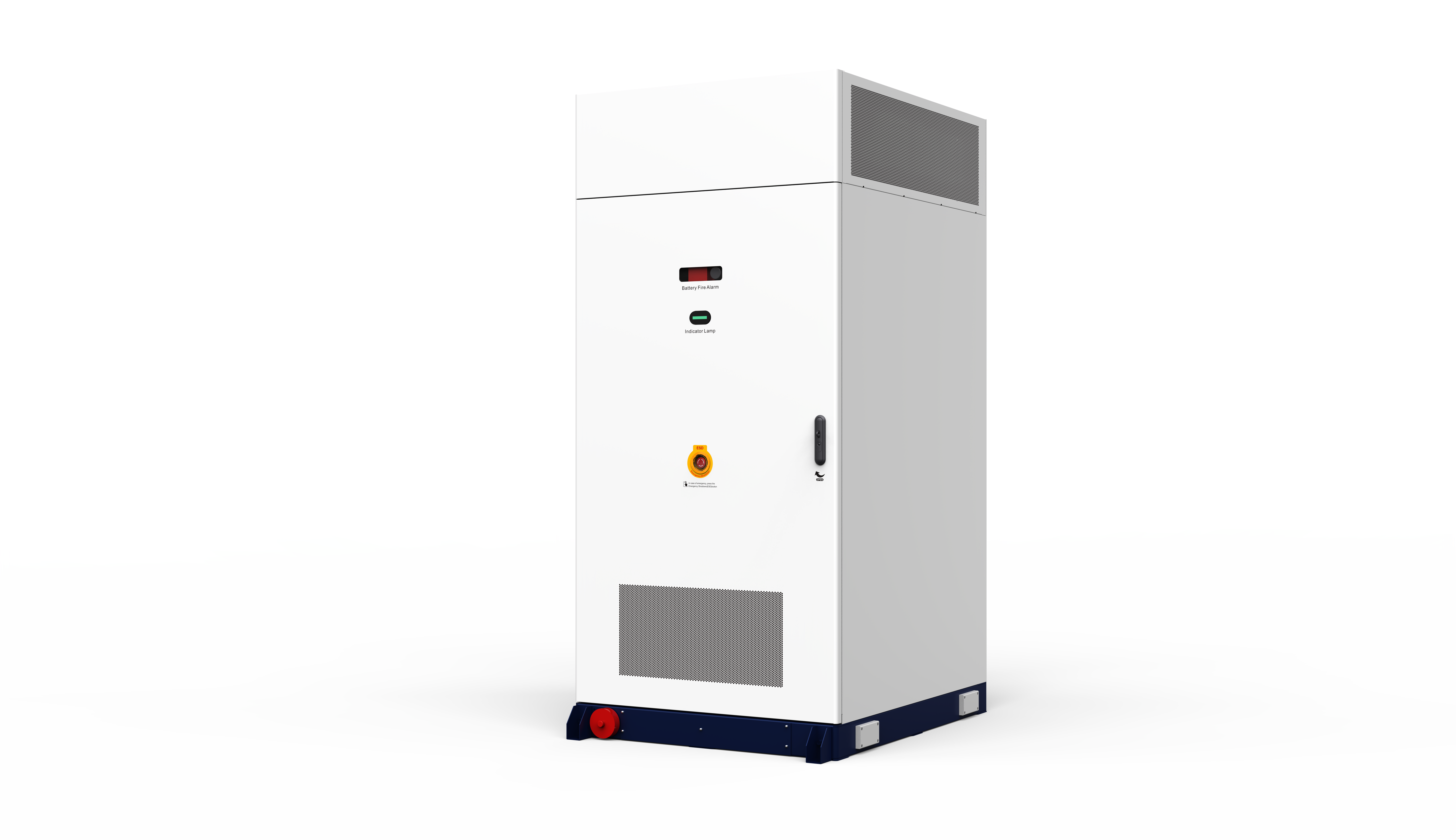

The ICB series all-in-one liquid-cooled energy storage system is specifically designed for commercial and industrial energy storage as well as EV charging energy storage applications. It offers two configurations: one with a rated power of 218kW and a capacity of 218kWh, with optional 30kW PV input; the other with a rated power of 120kW and a capacity of 241kWh, with optional 30kW/60kW PV input. It supports both standalone operation and multi-unit parallel expansion, allowing flexible
adaptation to different capacity requirements. It complies with IP55 protection rating for outdoor use, ensuring safe installation and reliable operation in outdoor environments.
| Technical Parameters | |||||
| Model | ICB218kWh-218kW | ICB218kWh-187kW-30kW | ICB241kWh-120kW | ICB241kWh-120kW-60kW | |
| Operating Environment | Operating temperature | -30°C~+50°C | |||
| Transportation/Storage temperature | -30°C~+60°C | ||||
| Relative humidity | ≤95%RH, non-condensing | ||||
| Altitude | 2000m | ||||
| Atmospheric pressure | 70kPa~106kPa | ||||
| Cooling method | Intelligent air cooling for PCS, liquid cooling for battery pack | ||||
| Protection rating | IP67 for battery pack, IP55 for cabinet | ||||
| AC Grid Access | Frequency | 45Hz~55Hz | |||
| Voltage | 3-phase+N+PE, 230Vac/400Vac±10% | ||||
| Max input current | 350A | 192A | |||
| Rated input power | 218kW/250kW (1 min) | 187kW/187.5kW (1 min) | 120kW/125kW (1 min) | ||
| Power factor | ≥0.99 (pure active power mode); -1~+1 adjustable (reactive/active power mode) | ||||
| THD | ≤3% | ||||
| PV Access | Voltage | N/A | DC+/DC-+PE, 300Vdc~825Vdc | N/A | DC+/DC-+PE, 300Vdc~825Vdc |
| Channel | 1 | 2 | |||
| Power | 30kW | 30kW/60kW | |||
| Battery Parameters | Dis/charging power ratio | 1P/1 Hour | 0.85P/1 Hour | 0.5P/2 Hours | 0.5P/2 Hours |
| Liquid-cooled battery pack | 153.6V, 285Ah, 43.7kWh, UL 9540A | 153.6V, 314Ah, 48.2kWh | |||
| Liquid-cooled battery cluster | 768V (672V~864V), 285Ah, 218kWh | 768V (672V~864V), 314Ah, 241kWh | |||
| Number of battery clusters | 1 | ||||
| BMS | Infypower 2-level architecture: battery pack BSU + high voltage control box BMU | ||||
| STS Cabinet | STS configuration | 250kVA/500kVA | |||
| STS power switching time | 20ms | ||||
| (Optional) | Function | Automatic/manual mode (on-grid/off-grid), 3-phase 4-wire operation (off-grid) | |||
| Protection | Anti-reverse | ||||
| Bypass/off-grid function | Optional | ||||
| Performance | STS efficiency | 99.50% | |||
| PCS efficiency | Max: 98.7%; Full load: >98% | ||||
| Standby power | 250W | ||||
| Noise | 72dB (25°C, 1m) | 60dB (25°C, 1m) | |||
| Parallel Configuration | On grid | Max 5 sets in parallel + AC cabinet;Up to 1.09MW/1.09MWh | Max 5 sets in parallel + AC cabinet;Up to 150kW solar/937.5kW/1.09MWh | Max 5 sets in parallel + AC cabinet;Up to 625kW/1.205MWh | Max 5 sets in parallel + AC cabinet;Up to 300kW solar/625kW/1.205MWh |
| Off grid | Max 2 sets in parallel + STS cabinetUp to 436kW/436kWh+ 500kVA STS | Max 2 sets in parallel + STS cabinetUp to 60kW solar/375kW/436kWh + 500kVA STS | Max 4 sets in parallel + STS cabinetUp to 500kW/964kWh+ 500kVA STS | Max 4 sets in parallel + STS cabinetUp to 240kW solar/500kW/964kWh + 500kVA STS | |
| Metering | AC grid side | 1 bidirectional AC energy meter | |||
| Backup load side (optional) | |||||
| Station transformer input side (optional) | |||||
| EMS | Local EMS | IMMU2 controller, built-in algorithms, big data analytics | |||
| Remote EMS platform | Ethernet: TCP/IP; Protocol: Websocket+Json, MQTT+Json, Modbus, IEC 104, IEC 61850 | ||||
| Remote hardware interface | 4G/WiFi/WLAN/LAN | ||||
| HMI | Internal 7″ TFT touch screen (English by default, multi-language supported), 5 * status LED, E-STOP, battery fire alarm indicator/beeper | ||||
| Reliability and Safety | Certification | TUV CE, RED | |||
| EMC/EMI | EN 301 908-1/-13, EN 62311, EN IEC 62311, EN 301 489-1/-52, EN IEC 61000-6-2/-4 | ||||
| Safety | EN 62477-1, EN 62109-1/-2, IEC 62619, IEC 63056, UL 9540A | EN 62477-1, EN 62109-1/-2, IEC 62619, IEC 63056 | |||
| Grid connection | UNE 217001/217002, RD 244, RfG Type B, NA/EEA-NE7-CH, PGS 37-1, TOR Erzeuger Type A/Type B, OVE-Richtlinie R 25, C10/11 Type B, CEI-0-16/21, VDE-AR-N 4110, EN 50549-1/-2 | ||||
| Others | Electrical isolation | PCS: non-isolated; PV DCDC: isolated | |||
| Insulation detection | Each battery/PV channel: +/PE and -/PE | ||||
| Fire protection | Completely submerged aerosol fire extinguishing system, water fire interface, optional pack-level active perfluorohexanone firefighting | ||||
| Fire sensor | Smoke • combustible gas | ||||
| Environmental sensor | Water • temperature • humidity • door access | ||||
| Safety design | Explosion-proof board configuration, fire-proof structure design, emergency fan | ||||
| High voltage control box | Infypower high voltage control box | ||||
| Thermal management | Infypower liquid cooling unit | ||||
| Mechanical Parameters | Dimensions (W*D*H) | 1100mm*1350mm*2400mm | |||
| Weight | ≤2800kg (including power module and battery pack) | ||||
| *The product is continuously evolving. Please refer to the latest datasheet for specifications. | |||||
