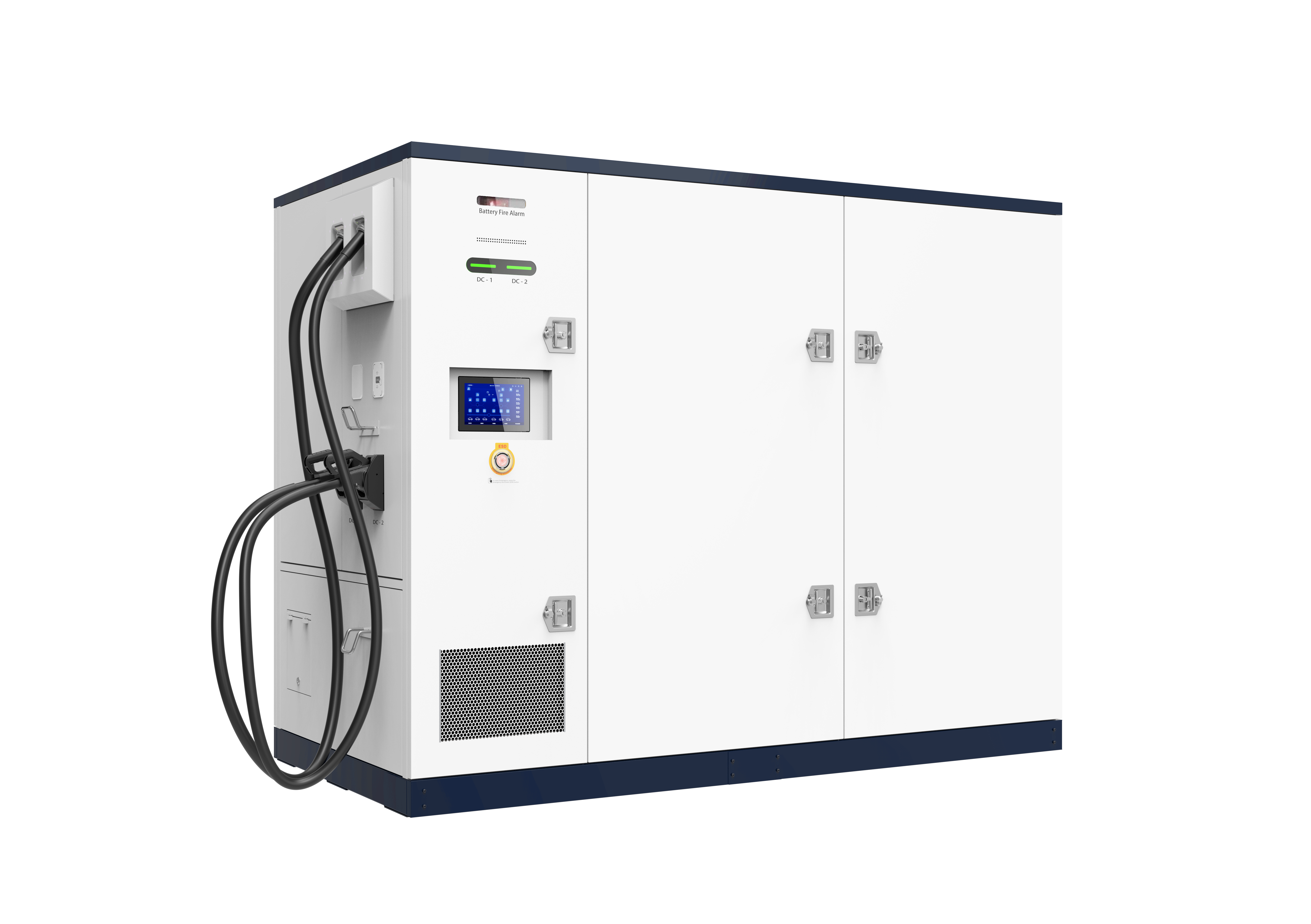

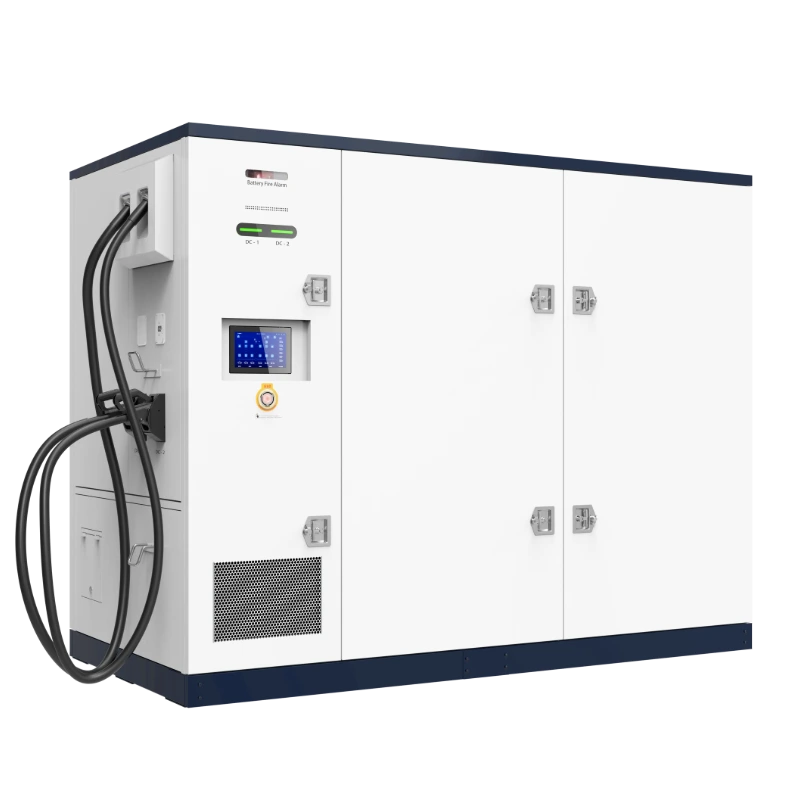

IHEBV470K7D-350LL3C Liquid-Cooled Movable All-in-One Battery Buffer Charger supports temporary rescue charging and off- grid power supply services. With the support of local and cloud-based EMS, it helps balance power supply and demand among the grid, battery system, EV charging and renewable energy sources. A fully liquid-cooled battery design enables 1P discharge performance, ensuring compliance with AC grid power limits while delivering high-power charging with improved energy cost efficiency and space utilization, as well as extended battery life. Its fully off-grid electrical design and reinforced structural design make it suitable for long-term transportation under vibration conditions and temporary on-site charging applications.
| Technical Parameters | |||
| Operating Environment | Operating temperature | -20°C~+70°C, full power output up to 50°C, power derating 5%/°C above 50°C | |
| Transportation/Storage temperature | -30°C~+60°C | ||
| Relative humidity | ≤95%RH, non-condensing | ||
| Altitude | 2000m | ||
| Atmospheric pressure | 80kPa~110kPa | ||
| Cooling method | Liquid cooling | ||
| Protection rating | NEMA 3R, IP54 for power cube, IP55 for battery cabinet, IP67 for battery pack | ||
| AC Input (On-Grid) | Frequency | 45Hz~65Hz | |
| Voltage | 3-phase+(N)+PE/260Vac-530Vac | ||
| Max input power | 70kW | ||
| Max output power (optional) | 70kW | ||
| Off-grid operation | Support | ||
| Grid access interface | Industrial socket inlet | ||
| DC Output | Voltage | 150Vdc~1000Vdc | |
| Max output current | 375A | ||
| Max output power | 400kW | ||
| Output channel | 2 | ||
| Performance | Standby power | 246W | |
| Noise | <60dB | ||
| Metering | AC input side | 1 AC energy meter, optional MID-certified meter | |
| DC output side | 1 or 2 DC energy meters, optional NMI Eichrecht-certified meter | ||
| Power Module/12 Slots | LCG1K0135G | DC2DC converter, 40kW/1kV | 10 * 40kW ES battery bus discharging/EV charging power |
| LBG1K0120G | Bidirectional AC2DC inverter, 35kW/1kV | 2 * 35kW AC power | |
| Battery Pack | Energy storage battery | 2*175kWh/285Ah liquid-cooled battery packs, 547.2~696.96Vdc, 1P dis/charge, max 1.1P discharge for 10 min | |
| High voltage control box | Two Infypower high voltage control boxes | ||
| BMS | Infypower 2-level BMS structure: battery pack BSU + high voltage control box BMU | ||
| Mechanical Parameters | Dimensions (W*D*H) | 2800mm*1400mm*2200mm | |
| Weight (cabinet+module) | 6640kg+12*30kg=7000kg | ||
| Others | Charging modes | Auto/By Time/By Plan/By kWh/By SOC | |
| Charging connector | 2 * CCS/NACS/GBT, or CCS + NACS/GBT | ||
| Power switching mode | Simultaneous charging: booth charging connectors can receive 200kW Sequential charging: both charging connectors can receive 400kW | ||
| HMI | Tempered glass protective 10″ capacitive touch screen LCD, RGB LED, E-STOP, battery alarm light and beeper | ||
| Payment | RFID, optional credit card reader installation | ||
| Monitoring interface | OCPP 1.6J, support update to 2.0, PnC/smart charging/power management support, LAN 100M and LTE wireless modem support | ||
| Certification | TUV CE, CB | ||
| Grid connection | EN 50549, VDE-AR-N 4105, VDE-AR-N 4110 | ||
| *The product is continuously evolving. Please refer to the latest datasheet for specifications. | |||
