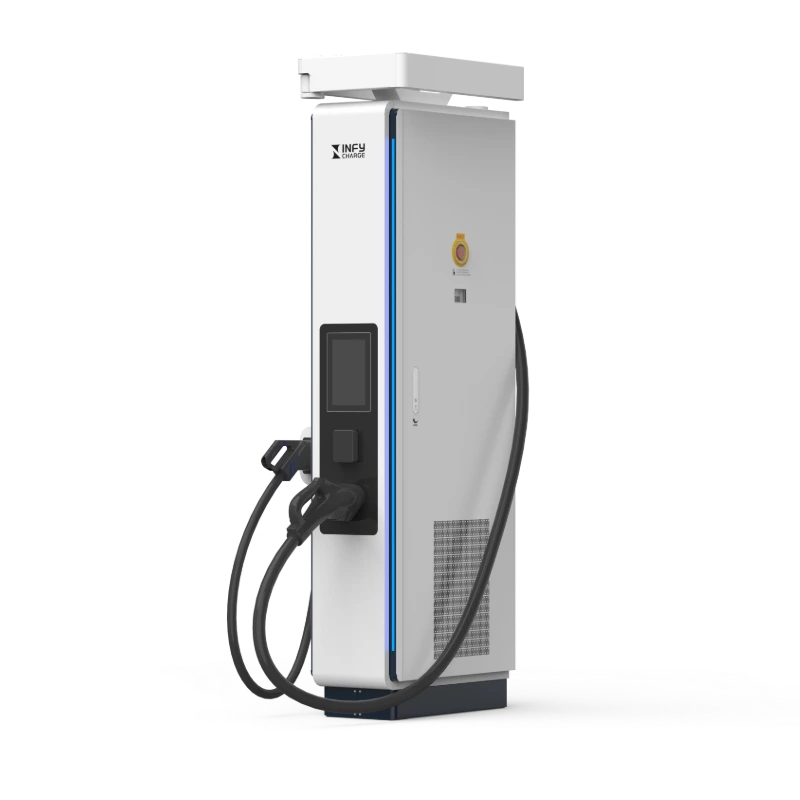

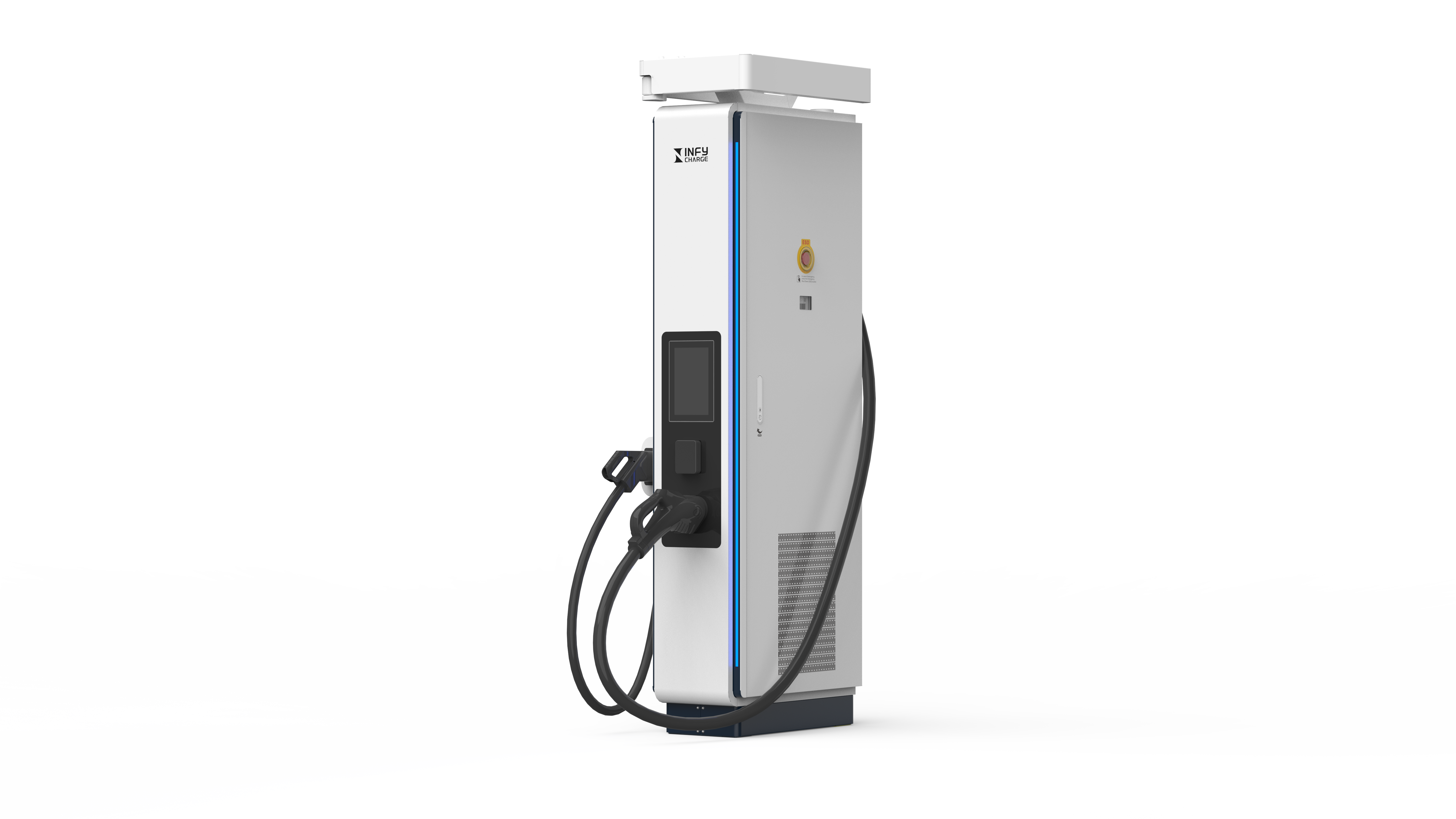

EXP1500 Megawatt Charging System (MCS) charging dispenser is specifically designed for EV charging operators, offering flexible split type system configurations and support for multiple charging points. It is compatible with CCS1/CCS2/NACS/GBT/ MCS standards and can be configured with air-cooled charging connectors rated up to 200A (CCS1, CCS2, NACS), 250A (CCS2, GBT), 300A (CCS1, CCS2, NACS), 375A (CCS2), and 380A (NACS), as well as liquid-cooled charging connectors rated up to 500A (CCS2, GBT), 600A (CCS1, NACS, GBT) and 1500A (MCS). The corresponding maximum output power for these configurations is 200kW, 250kW, 300kW, 375kW, 380kW, 500kW, 600kW, and 1500kW, respectively.
| Technical Parameters | |||
| Model | EXP1500-HLL5C (CE) | EXP1500-HLL6C (UL) | |
| Operating Environment | Operating temperature | -30°C~+70°C, full power output up to 50°C, power derating 5%/°C above 50°C | |
| Transportation/Storage temperature | -40°C~+75°C | ||
| Relative humidity | ≤95%RH, non-condensing | ||
| Altitude | 2000m | ||
| Atmospheric pressure | 80kPa~110kPa | ||
| Cabinet cooling | Liquid cooling | ||
| Cable cooling | Air cooling/liquid cooling | ||
| Protection rating | IP55 (NEMA 3S)/IK10 (IK08 for 10.1″ LCD) | ||
| Noise | 55dB | ||
| DC Input | Voltage | 150Vdc~1500Vdc | |
| Input channel | 2 or 3 (2 for MCS 1500A + optional 1 for CCS 600A) | ||
| DC Output | Charging cable | 2 | |
| Voltage | 150Vdc~1500Vdc | ||
| Max output current | 1500A + 600A | ||
| Optional (boost current) | 1500A + 700A | ||
| Max output power | 1500kW + 600kW | ||
| Standard | Certification | TUV CE, cTUVus, RED, CB, FCC, OCA, NMI Eichrecht | |
| Charging standard | DIN70121, ISO15118 (optional ISO15118-20) | ||
| EMC/safety | EN 61851-21-2, EN 61000-6-2/4 Class A, EN 61851-1/23/24, EN 61851-23-3, UL 2202, CSA C22.2 | ||
| Function and Interface | HMI | Tempered glass protective 10.1” capacitive touch screen LCD, RGB panel LED, E-STOP, QR code, POS (optional) | |
| Metering | DC energy meter, MID-certified meter, optional NMI-certified meter | ||
| Backend | OCPP 1.6J/2.0.1 (optional 2.3X), PnC/OTA/smart charging/power management support, LTE wireless modem/Ethernet | ||
| Cable management | Top-mounted swing-arm for cable retraction | ||
| MBE function | WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness | ||
| Charging protection | Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection | ||
| Reverse polarity protection | |||
| Configuration | Charging connector | CCS+MCS/NACS+MCS/GBT+MCS/CCS+CCS, or 1*MCS | |
| Charging connector capacity | MCS: 1500A; CCS: 200A/250A/300A/375A/500A/600A; NACS: 200A/300A/380A/600A; GBT: 250A/500A/600A | ||
| Mechanical Parameters | Dimensions (W*D*H) | 355mm*730mm*2200mm | |
| Weight | 330kg | ||
| *The product is continuously evolving. Please refer to the latest datasheet for specifications. | |||
