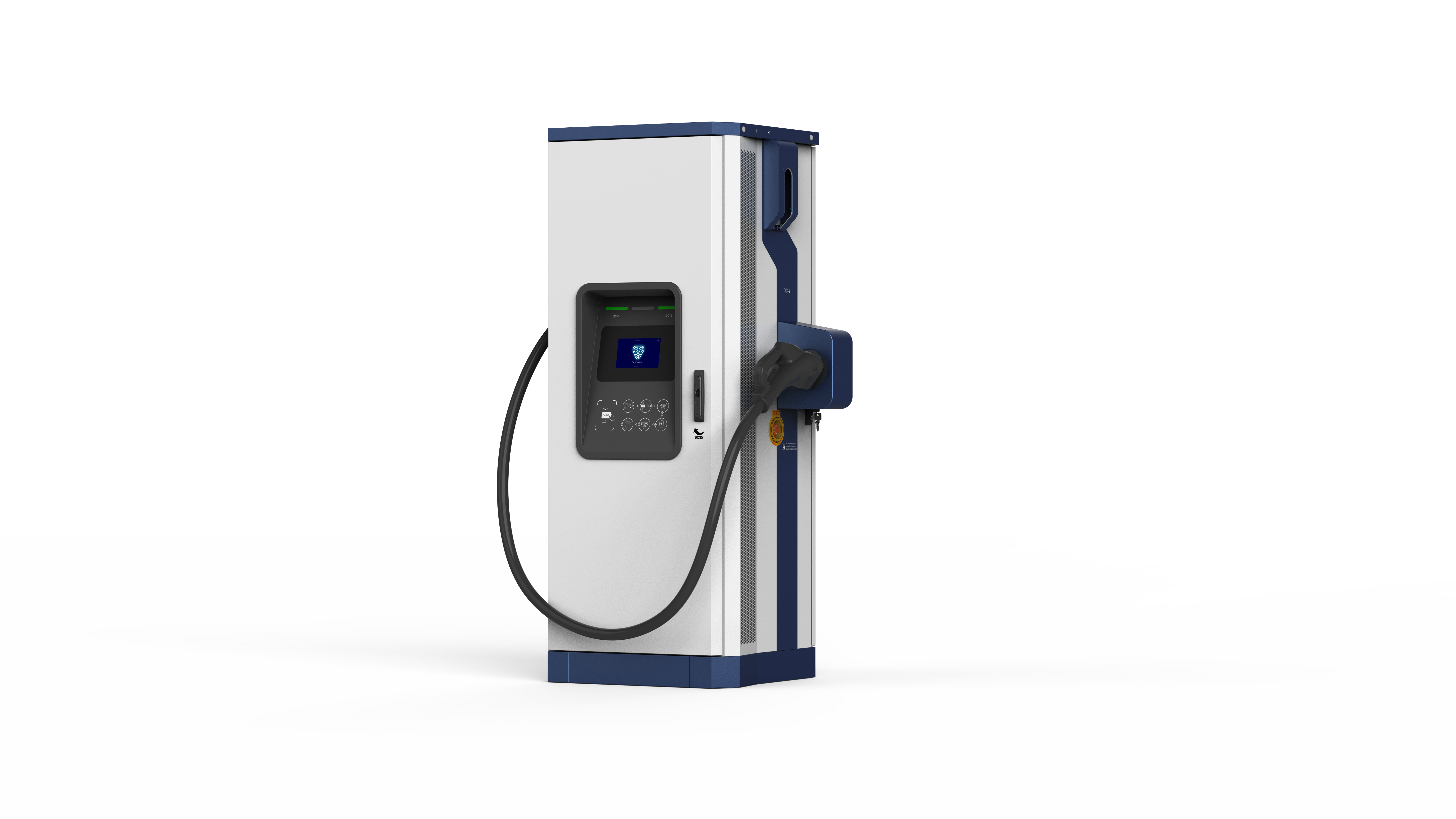

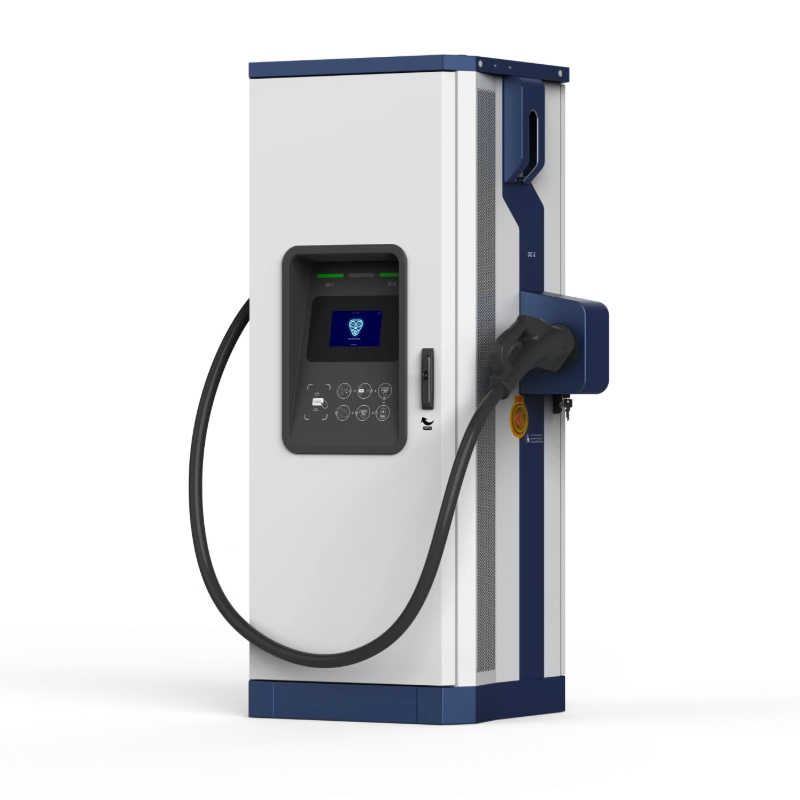

EXP300H9-FS Megawatt Charging System (MCS) charger adopts all-in-one design and is compatible with MCS EV charging standard. It features a small size and light weight, making it easy to install and relocate, along with a user-friendly interface, IP55 protection, and a robust, durable structure suitable for various outdoor applications. It can deliver up to 300kW charging power and 250Vdc to 1500Vdc charging voltage.
| Technical Parameters | ||
| Operating Environment | Operating temperature | -30°C~+70°C, full power output up to 50°C, power derating 5%/°C above 50°C |
| Transportation/Storage temperature | -40°C~+75°C | |
| Relative humidity | ≤95%RH, non-condensing | |
| Altitude | 2000m | |
| Atmospheric pressure | 80kPa~110kPa | |
| Cooling method | Air cooling | |
| Protection rating | IP55/IK10 (IK08 for touch screen) | |
| Input Parameters | AC frequency | 45Hz~65Hz |
| AC voltage | CE: 3-phase+(N)+PE, 380/400Vac±10%; UL: 480Vac±10% | |
| AC input current | CE: 485A; UL: 384A | |
| Power factor | >0.99 | |
| THDi | <3% (rated input) | |
| Output Parameters | DC output voltage | 250Vdc~1500Vdc |
| Constant power voltage range | 400Vdc~1500Vdc | |
| Max DC output current | 350A@857V, 300A@1000V, 200A@1500V | |
| Max DC output power | 300kW | |
| Performance | Max system efficiency | >95% (rated input and output) |
| Standby power | 40W | |
| Noise | <65dB | |
| Standard | Backend | OCPP 1.6J, support firmware update to 2.0x, OTA/PnC/smart charging/power management support |
| MCS PLC communication | DIN70121, ISOI5118 | |
| Function and Interface | HMI | Tempered glass protective 7″ TFT touch screen LCD, RGB LED, EPO |
| Metering | DC energy meter | |
| Monitoring interface | LAN and LTE wireless modem support | |
| Payment | RFID, Mobile APP, POS (optional) | |
| MBE function support | WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness | |
| Charging Protection | Overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection | |
| Insulation monitoring, protective earth connection monitoring | ||
| Reverse polarity protection, overtemperature protection | ||
| RCDA main protection (CE version only) | ||
| Configuration | Charging module | 6 * REG1K5125G2 50kW 1500V |
| Charging connector | 1 * MCS | |
| Charging connector capacity | MCS: 350A | |
| Mechanical Parameters | Dimensions (W*D*H) | 700mm*750mm*1750mm |
| Weight (cabinet+module) | 320kg+6*20kg=440kg | |
| *The product is continuously evolving. Please refer to the latest datasheet for specifications. | ||
