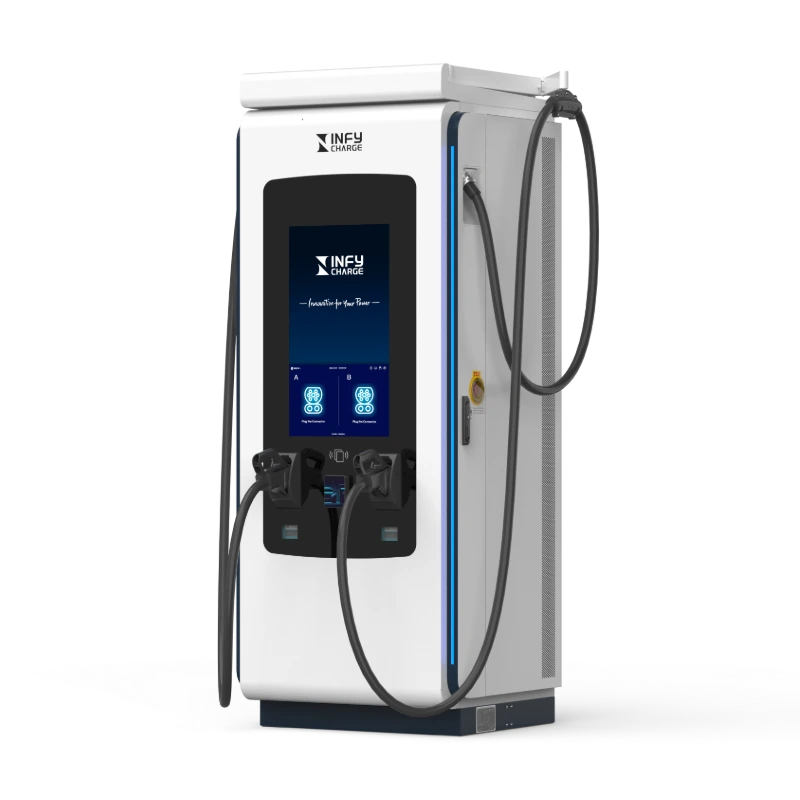

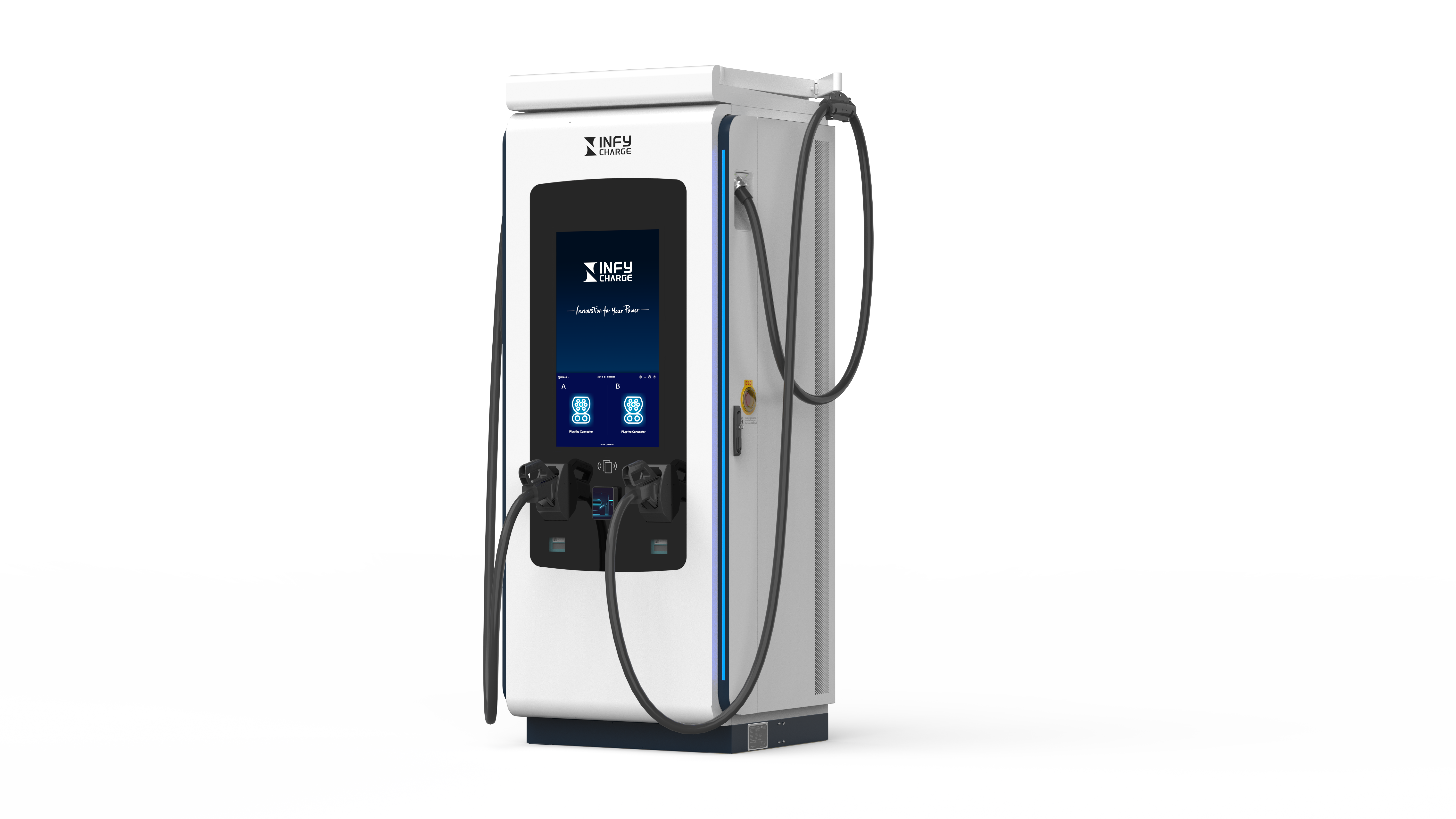

EXP480K6-FD fast DC charger is specifically designed with high power, high current, high protection and high reliability, and is fully compatible with CCS1/CCS2/NACS/GBT EV charging standards. Featuring all-in-one design and IP55 protection, it is
suitable for diverse harsh environments. It delivers up to 480kW of charging power, with a maximum output current of 600A and a maximum voltage of 1000Vdc. The completely updated design features light bars, 32″ (optional 10”) LCD and a more user- friendly connector management system.
| Technical Parameters | ||
| Operating Environment | Operating temperature | -30°C~+70°C, full power output up to 50°C, power derating 5%/°C above 50°C |
| Transportation/Storage temperature | -40°C~+75°C | |
| Relative humidity | ≤95%RH, non-condensing | |
| Altitude | 2000m | |
| Atmospheric pressure | 79kPa~106kPa | |
| Cooling method | Forced air cooling | |
| Protection rating | NEMA 3R/IP55/IK10 | |
| AC Input | Frequency | 45Hz~65Hz |
| Voltage | CE: 3-phase+N+PE, 380/400V±10%; UL: 3-phase+(N)+PE , 480V±10% | |
| Max input current | CE: 776A; UL: 614A | |
| Power factor | >0.99 | |
| THDi | <3% (rated input) | |
| DC Output | Voltage | 150Vdc~1000Vdc |
| Constant power voltage range | 300Vdc~1000Vdc | |
| Max output current | 1200A@400V/960A@500V/480A@1000V | |
| Max output power | 480kW | |
| Performance | Max system efficiency | ≥96.5% |
| Standby power | 100W | |
| Noise | ≤65dB | |
| Standard | Backend | OCPP 1.6J, support firmware update to 2.0x, OTA updates, PnC/smart charging/power management support |
| CCS PLC communication | DIN70121 and ISOI5118 | |
| GBT | GB/T 18487.1-2015, GB/T 27930-2015, GB/T 20234.1~3-2015 | |
| Certification | TUV CE, cTUVus, RED, CB, OCA, FCC, CTEP, UKCA, Energy Star, NMI Eichrecht | |
| UL 2231, UL 991, UL 2202, CSA C22.2 No.346:22, EN 61000-6-3/EN 61000-6-1 Class A, EN 61851-1/EN 61851-23/EN 61851-24 | ||
| Function and Interface | HMI | 32″ (optional 10”) tempered glass TFT touch screen LCD, two light bars, EPO |
| Metering | DC energy meter, optional MID-certified and NMI-certified meter | |
| Monitoring interface | LAN and LTE wireless modem support | |
| VPF function | Optional VPF configuration, from 40kW to 480kW with VPF power module | |
| Power switching mode | Intelligent power switching matrix dynamically allocates power modules among charging connectors (with 120kW power step), maximizing overall power utilization efficiency | |
| Payment | RFID, Mobile APP, POS (optional) | |
| MBE function support | WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness | |
| Charging Protection | Overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection | |
| Insulation monitoring, protective earth connection monitoring | ||
| Reverse polarity protection, overtemperature protection | ||
| Configuration | Charging module | 12 * 40kW module |
| Charging connector configuration | 2 * CCS1/CCS2/NACS/GBT | |
| Charging connector capacity | CCS1: 600A/350A, CCS2: 500A/375A, NACS: 600A/360A, GBT: 600A/400A | |
| Cable management | Two top-mounted cable rocker arms | |
| Mechanical Parameters | Dimensions (W*D*H) | 870mm*750mm*2256mm |
| Weight (cabinet+module) | 546kg+12*17kg=750kg | |
| *The product is continuously evolving. Please refer to the latest datasheet for specifications. | ||
